The number-one selling Formula Band Saw in North America.

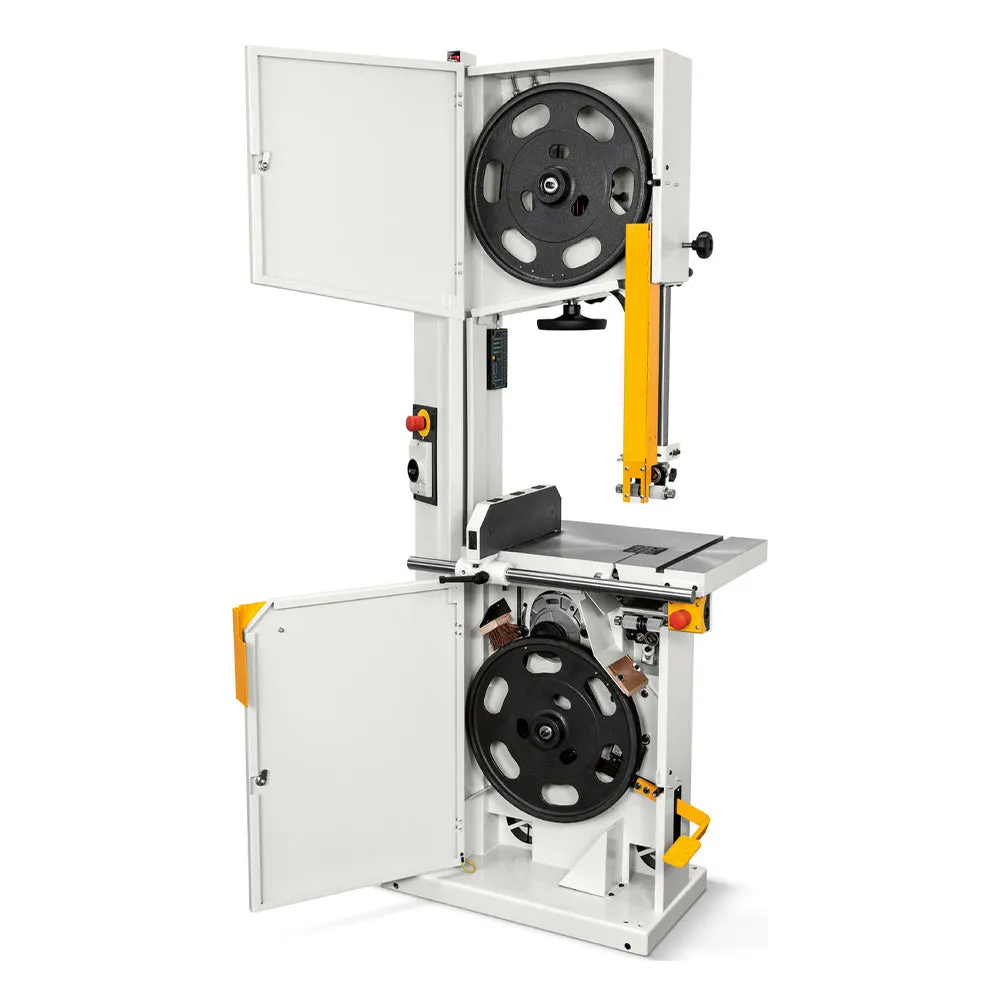

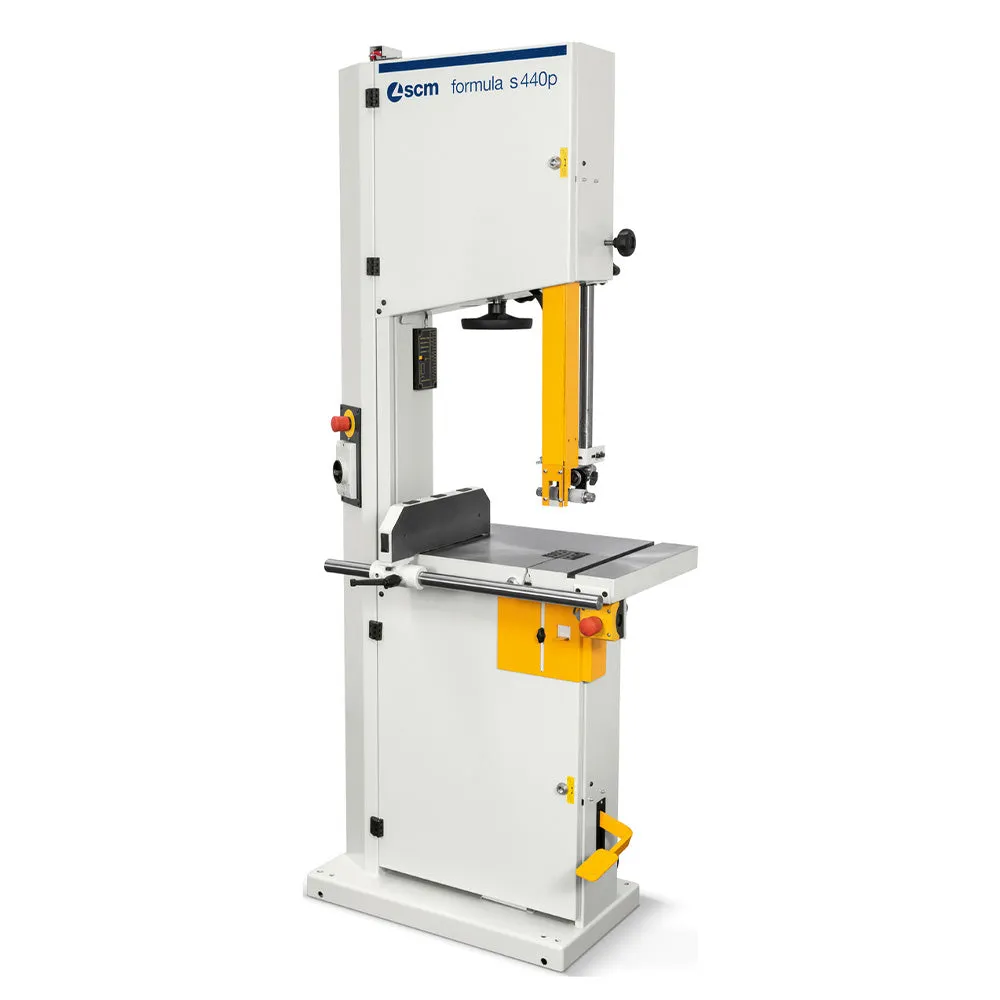

Designed specifically for the North American market, the Formula S 440P Band Saw has everything hobbyist and larger craft shops need. This versatile machine can handle delicate or tight curved work, and heavy-duty resaw operations. This robust band saw features a 4.8 horsepower single-phase motor, 17.3” resaw height, 16.3” cutting width and large 17.3” flywheel diameter with a 20.47” by 28.34” work table that can tilt up to 45°!
The Formula S 440P comes with upper and lower Europeans-style guides on the machine. These guides provide for quick and easy adjustments without the need for tools. They can be adjusted up or down to accommodate the tilting of the table. When you are not tilting the table, you can raise the guides all the way up to the lower table surface to decrease the distance between your guides, maintaining maximum stability through your cut.
This machine boasts plenty of features. Thick cast iron wheels are perfectly balanced to reduce vibration and produce a fly wheel effect to aid in the processing of your pieces. Heavy-duty steel frames are the most rigid in their class and are designed to withstand the tension required for a carbide tipped blade.
The Formula S 440P also has vulcanized tires that not only bonds the rubber tires to the wheel, but fuses them so they become like one, which means greater transfer of power. This also makes it nearly impossible to shred them if a blade breaks, and there is less wear and maintenance over their lifetime.

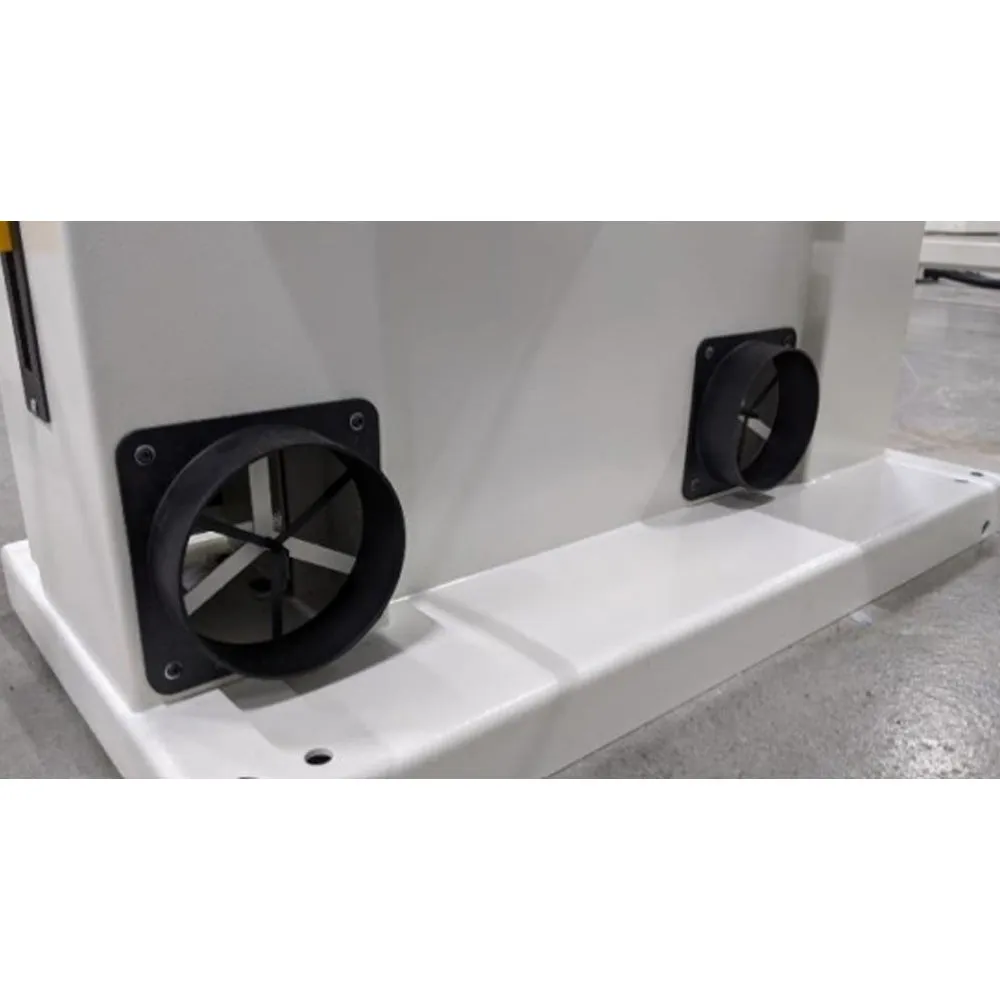

Two dust ports are included on this band saw, not just one like most others. This helps ensure that you will capture more debris, more efficiently.
[TABS]
Features
- Steel frame
- Cast-iron work table
- Cast-iron rip fence

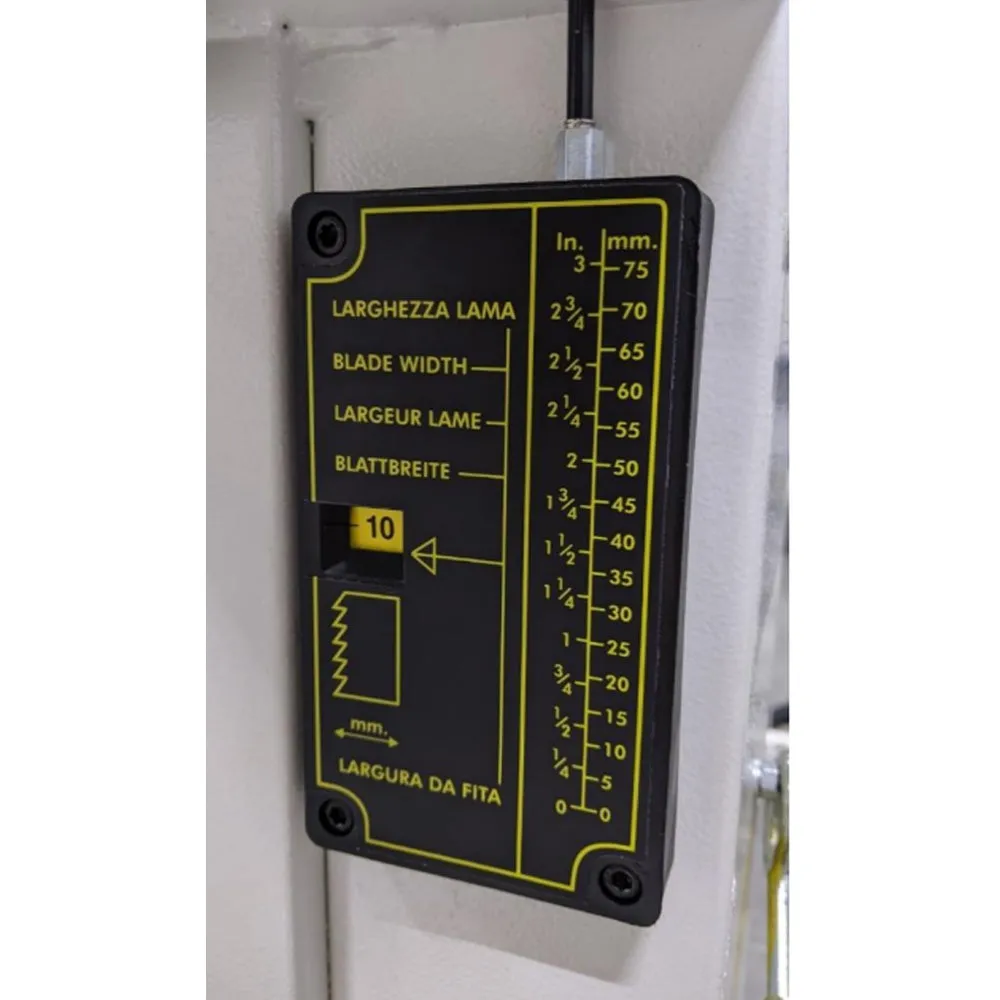

- Saw-blade tensioning indicator
- Rack and pinion lifting system

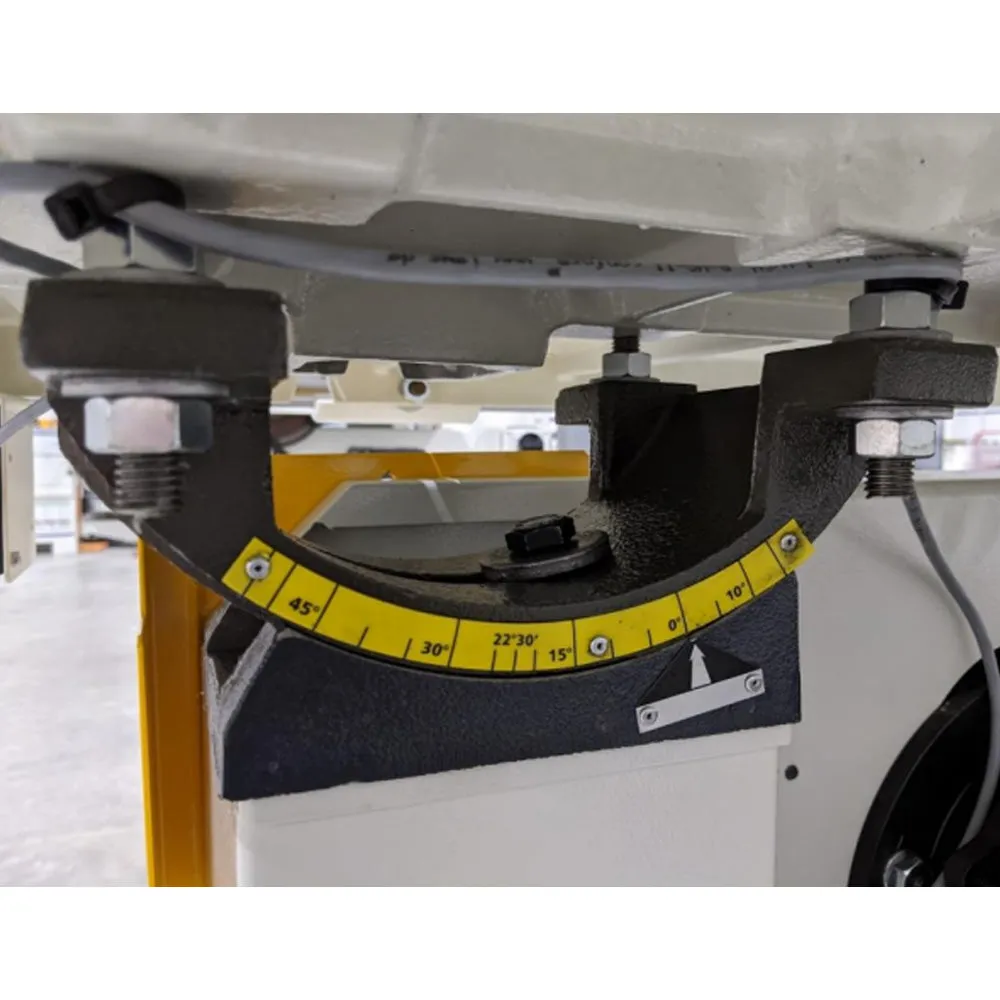

- Quick-tilting table with single-handle adjust feature
- Disc-type cast-iron flywheels running on sealed ball bearings
- Thick, vulcanized tires
- American miter slot (3/8" deep x 3/4" wide)
- Band saw lower footbrake
- Overload motor protection
- Emergency push/stop button

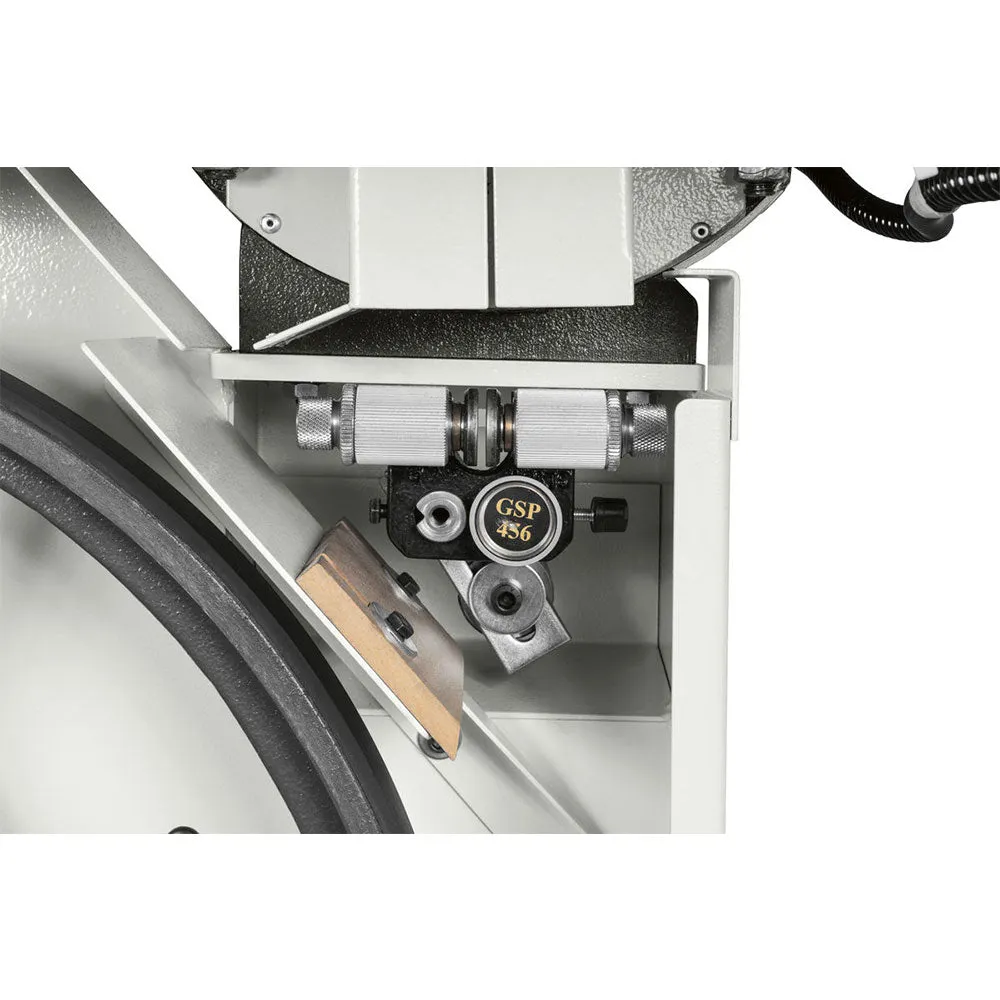

- Top-bottom European-style roller guides with ball bearings
- Cleaning brush on bottom wheel
- Safety micro switches
- Two lower exhaust port outlets for dust extraction
- Tool set and owner's manual
Specs

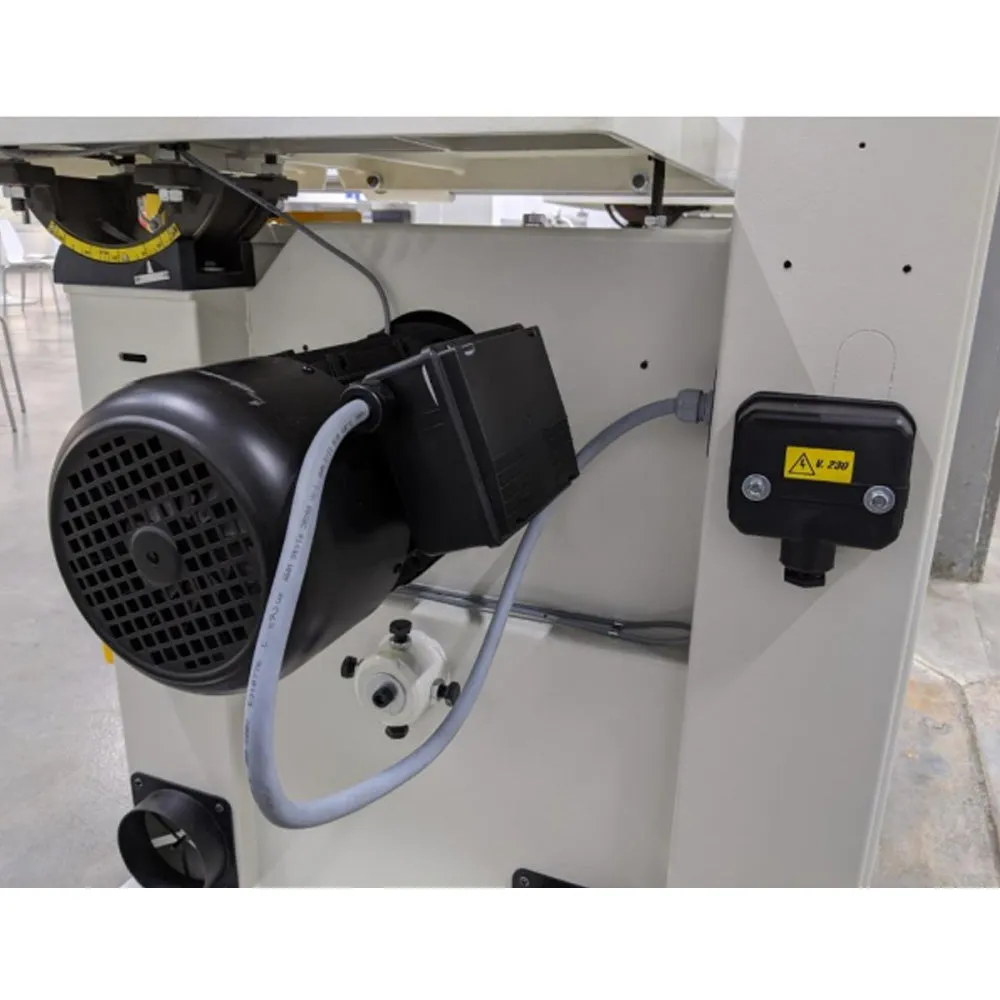

Motor: Single-phase, 230v
Horsepower: 4.8hp
Recommended Circuit: 30 amp
Flywheel Diameter: 17.3” (440 mm)
Table Size: 20.5” x 28.3” (520 x 720 mm)
Table Tilt: 0° - 45°
Cutting Height/Depth: 17.3” (440 mm)
Cutting Width: 16.73” (425 mm)
Min. Blade Length: 153” (3,890 mm)
Max. Blade Length: 155.5” (3,950 mm)
Min Blade Width: .25” (6 mm)
Max Blade Width: 1” (30 mm)

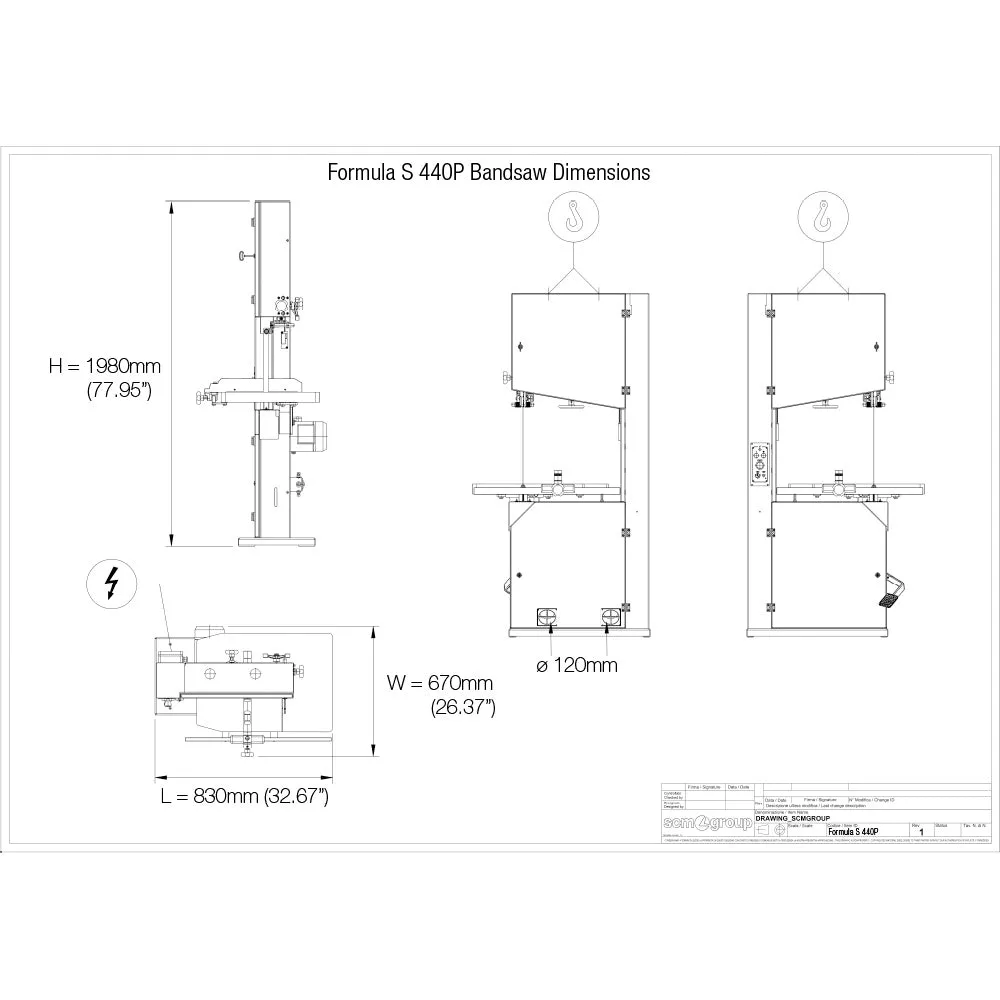

Overall Dimensions (Used Upright/Vertically): 32.6” x 26.3” x 78” (83 x 67 x 198 cm)
Net Weight: 440 lbs. (200 kg)
Total Dust Extraction Ports: 2 Total
Dust Extraction Ports Diameter: 4.7” (120 mm)
Includes
- Mobility kit
- Tool set
- Owner's manual
